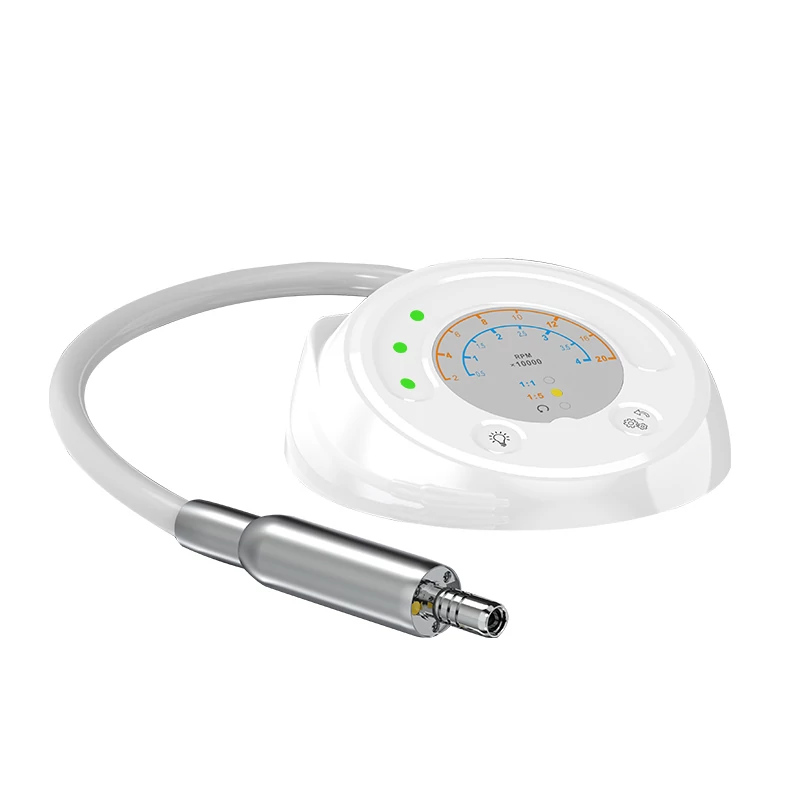

C-Puma Mini - micromotor, with hose connection, without carbon brushes and handpiece

Dear dentists!

Here's your chance to get a second electric micromotor easily, quickly and cheaply if you don't want to be left without work due to the failure of your first micromotor or if you regret using your more expensive micromotor for "less hard" work (e.g. crown cutting).

Technical conditions: ( If you don't know your control unit well, ask your service technician!)

• You must have a well-functioning 4 or 6-hole turbine hose on your dental unit
• You must have a treatment chair with a pressure of 2-5 bar and also start and stop this micromotor with your foot pedal
• .
• The air in the treatment unit can have a pressure of 1-2.5 bar,
• The water can have a pressure of 0.8-2 bar in the control unit
• There must be a 220 V socket near the dental chair
• .
• If your turbine hose is shiny (at least 6 holes), it will also provide the light for this micromotor.

Properties of the micromotor:

• works well with 1:1 and 1:5 handpieces (accelerator)
• can be connected to a normal European 220 V socket
• Dimensions: 15x13x5 cm (height 5 cm)
• Speed: 5 000 - 40 000 rpm, (with 1:5 accelerator it is 200 000 rpm), manually semi-circular adjustable by touch
• Torque: 2 N.cm
• Cable length: 1.8 m
• LED: 10 000 lux
• Carbon brushed, durable, high-quality micromotor
• Light can be switched on/off
• High quality, high intensity, light return indicator
• Device weight: 470g
• Air flow rate: 50 ml/min

The red accelerator manifold is only an illustration in the pictures, it is not part of the set, but you can buy it from us at a favourable price by clicking here!

Our micromotor is compatible with any of the mc2 micromotor compatible manifolds: red, blue, green.
