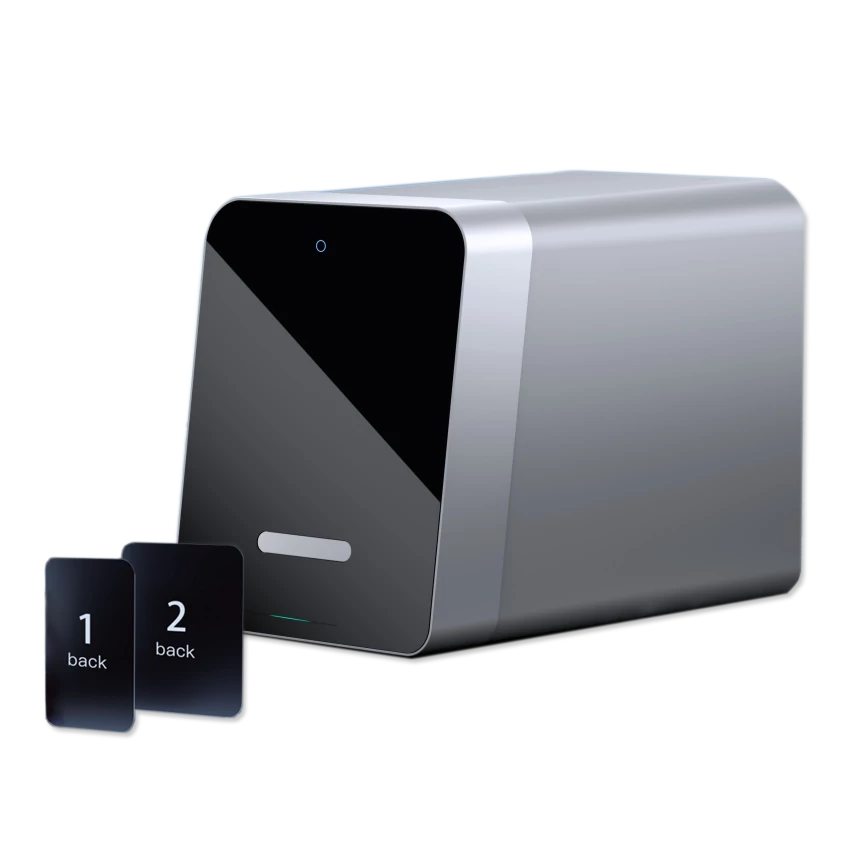

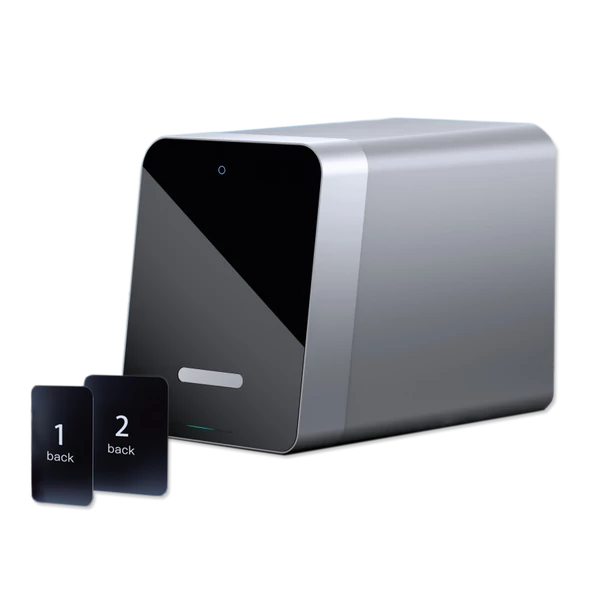

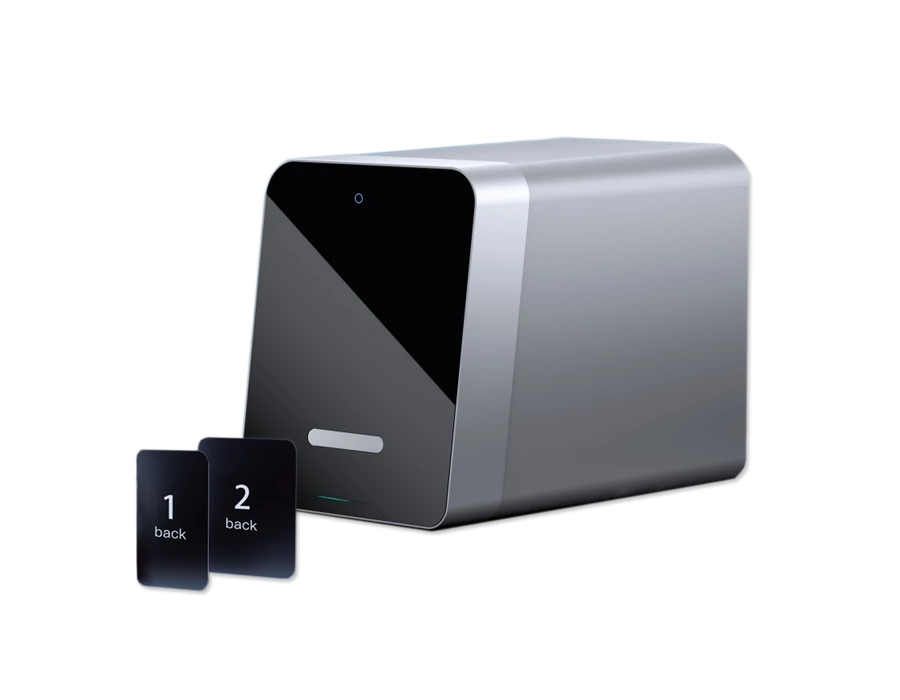

Free Scan, Inraoral PSP plate scanner

Summary of the different X-ray imaging systemsAdvantages and disadvantages

Features of the Free Scan product:

• Free Scan offers the advantages of Free Scan

• Good-looking, compact main unit

• Advanced algorithm

• Fast display

• Easy to operate, user-friendly

• Good quality, fast chip, intelligent scanning

Technical parameters

• Power supply requirements of the main unit:：DC 15V 3.2A

• The machine is compatible with the following plate sizes: 1, 2, 3 (not with size 4, but it is the most commonly used)

• Threshold contrast: all 4 of 1.0mm, 1.5mm, 2.0mm and 2.5mm

• Distortion: ＜ 2%

• Scanning accuracy: 25 micrometres

• Scanning resolution: 17 LP/mm (LP = line pair, i.e. 34 lines/mm)

• Size：280*165*210 mm

• Weight ：5.2 kg

• Fast and easy software installation: Ai-Dental Client

• System requirements. 8 GB, minimum screen resolution: 1920*1080

Free Scan Machine package contents:

• Main device

• Main scanning unit, power cable

• USB port

• USB cable Network cable USB connection USB cable

• Storage box for floppy discs (10x11x9 cm)

• 400 hygiene bags for floppy discs

• 400 hygienic disc protection cards

If you have any questions or work in Budapest and would like a product demonstration, please give me a call!
Dr Tibor Gábor Handa: +36 1 792 7332 (Mon-Fri: 8.30-15.30)
